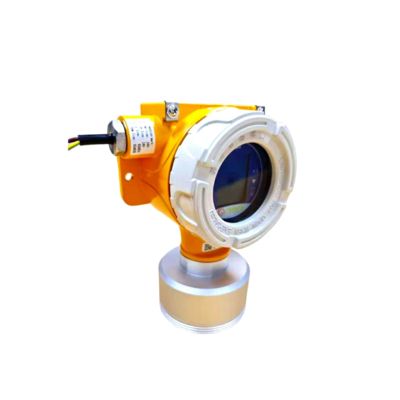

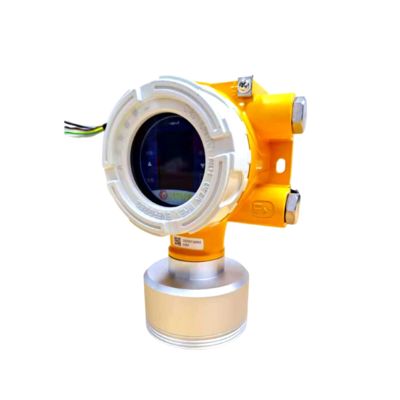

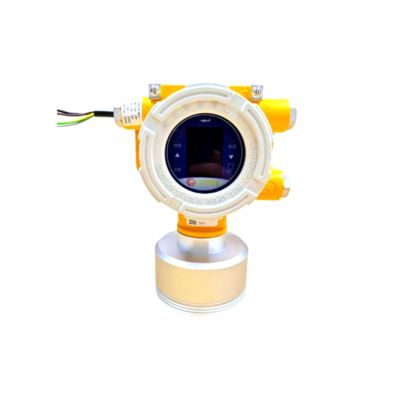

Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants

  • Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants
  • Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants
  • Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants
  • Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants
Τόπος καταγωγής ΚΙΝΑ
Μάρκα Zetron
Πιστοποίηση CE, Atex
Αριθμό μοντέλου MIC100
Ποσότητα παραγγελίας min 1 σετ
Τιμή USD 100-545/set- 879/set
Συσκευασία λεπτομέρειες 29*26*13,5 εκ., 2,5 κιλά
Χρόνος παράδοσης 1-10 ημέρες εργασίας
Όροι πληρωμής T/T, Western Union, MoneyGram, D/P, D/A, L/C
Δυνατότητα προσφοράς 1000 ΣΥΝΟΛΟ/εβδομάδα

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Όνομα προϊόντος MIC 100 Τύπος Σταθερός ανιχνευτής
Τύποι αερίων που ανιχνεύονται Εύφλεκτα αέρια, τοξικά αέρια, VOCs Ακρίβεια μέτρησης ±3% της πλήρους κλίμακας
Χρόνος απόκρισης (T90) Εύφλεκτα αέρια: < 30 δευτερόλεπτα Θερμοκρασία εργασίας -40 ° C έως +70 ° C
Πιστοποίηση απόδειξης έκρηξης Exd IIC T6 Gb (καύσιμο αέριο) Exd ib IIC T6 Gb (τοξικό αέριο) Εγγύηση 1 έτος
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

MIC100 Fixed Type 4-in-1 Gas Detector

The MIC100 Multi-Gas Online Detector is a high-performance, multi-functional gas detection terminal designed specifically for industrial safety applications. It can simultaneously monitor up to four different gases and can be flexibly configured to handle combustible gases, toxic and hazardous gases, and volatile organic compounds (VOCs).



The MIC100 integrates multiple advanced sensing technologies, including catalytic combustion, high-sensitivity electrochemical, precise non-dispersive infrared (NDIR), and fast-response photoionization (PID) sensors, ensuring superior measurement accuracy and reliability.



Its intelligent modular design, combined with a clear OLED display and convenient infrared remote control operation, greatly improves maintenance efficiency and enhances operational safety in hazardous environments. Additionally, the MIC100 features IP66-rated triple waterproof protection and strict explosion-proof certification, making it a reliable safeguard for personnel health and production safety.



Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants 0



Key Features

  • Convenient and Intuitive Operation: Features an OLED display for clear and intuitive concentration readings. Supports infrared remote control operation, allowing users to perform parameter settings and calibration without opening the housing in hazardous areas—significantly enhancing safety and convenience.

  • Integrates catalytic combustion, electrochemical, NDIR, and PID technologies to ensure broad-spectrum and high-precision detection.

  • Modular smart sensors support quick replacement and maintenance; equipped with an OLED high-definition display and infrared remote control, allowing parameter settings without opening the housing.

  • Convenient and Intuitive Operation: Features an OLED display for clear and intuitive concentration readings. Supports infrared remote control operation, allowing users to perform parameter settings and calibration without opening the housing in hazardous areas—significantly enhancing safety and convenience.

Technical Specifications
Parameter Specification
Detectable Gas Types Combustible gases, toxic gases, VOCs
Core Sensing Principles Catalytic combustion, electrochemical, photoionization, thermal conductivity, NDIR infrared
Measurement Accuracy ±3% of full scale
Repeatability Error ±2%
Response Time (T90) Combustible gases: < 30 seconds
Working Voltage 24VDC (operating range: 10VDC to 30VDC)
Max Power Consumption Toxic gases: < 1.5W; Combustible gases: < 2.5W
Signal Output Interfaces 3-wire 4~20mA / 4-wire RS485 (simultaneous output); two sets of passive relay contacts (24VDC, 2A)
Housing Material High-strength aluminum alloy
Dimensions (L×W×H) 209 mm × 160 mm × 86 mm
Weight Approx. 2.1 kg
Installation Method Wall-mounted, horizontal or vertical pipe installation
Protection Rating IP66
Operating Temperature Range Toxic gases: -20°C ~ +50°C; Combustible gases: -40°C ~ +70°C
Humidity Range 10% ~ 95%RH (non-condensing)
Atmospheric Pressure Range 86 kPa ~ 106 kPa
Explosion-Proof Certification Exd IIC T6 Gb (combustible) / Exd ib IIC T6 Gb (toxic)
Metrology Certification CPA Certified
Compliance Standards GB15322.1-2019, GB3836.1/2/4-2021, GB12358-2006
Application Industries:

The MIC100 Multi-Gas Online Detector is widely used in petrochemical, oil and gas, chemical, metallurgy, environmental protection, and pharmaceutical industries. It provides continuous and accurate monitoring of combustible, toxic, and volatile gases in complex industrial environments, ensuring workplace safety, preventing gas leaks, and protecting both personnel and equipment through reliable real-time detection and alarm functions.

Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants 1
